Steel Deck Modular Bridge Construction Delta Bridge

Steel Deck Modular Bridge Construction Delta Bridge Product performance

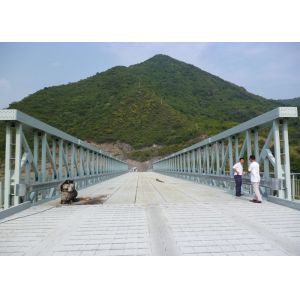

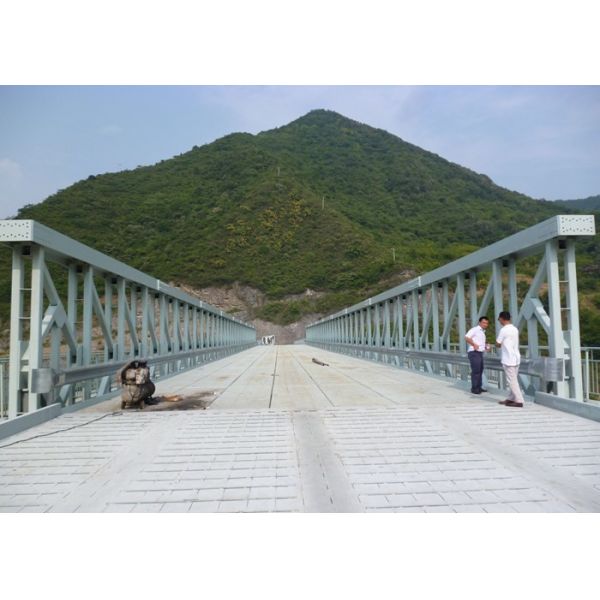

Steel Deck Modular Bridge Construction Delta Bridge is a prefabricated highway steel bridge used to overcome obstacles such as large-span gullies and rivers. It can use Bailey Bridge components as the cantilever for erection. It can be used as a permanent bridge for the different grades of road construction.

Steel Deck Modular Bridge Construction Delta Bridge Main technical data

Steel Deck Modular Bridge Construction Delta Bridge composition

Steel Deck Modular Bridge Construction Delta Bridge is a through down bridge composed of upper chords, lower chords, triangular webs, beams, bridge panels and connectors. The connection between components is bolted. External or built sidewalks can be designed on both sides of the bridge.

Before offering the quotation, we need to know the exact usage condition so that we can propose a proper technical specification. Hereon, pls kindly supply the following information as detailed as possible:

1. Type of Bridge
2. Span, Centre to Centre of Bearing of Supports (Bridge Length)
3. Height of the Bridge, Vehicular, Pedestrian clearance
4. Type of Deck
5. Carriageway Width
6. Sidewalk
7. Design Vehicular Loading
8. Seismic Loading
9. Minimum Vertical Clearance for Navigational Traffic
10. Maximum Deflection
11. Ratio of Depth to Length of Span
12. Galvanization and Finishing
13. Environmental Condition
14. Life service requirement ( for how many years the bridge is intended for use)
15. Quotation terms (EXW or other)
16. Better if there are site pictures can be provided.

China Harzone Industry Corp., Ltd. ,built in 1967, is the subsidiary of China State Shipbuilding Corporation Limited(CSSC) and one military enterprise whose conservation was given priority status in China.


Harzone Industry has the qualification of design, manufacturing and installing various steel products: emergency mechanized bridges; temporary and permanent steel bridges such as Pontoon Bridge, Bailey Bridge, Truss Bridge, Suspension Bridge, Girder Bridge and Cable Stayed Bridge; steel structures for industrial workshops, commercial buildings and habitation buildings; special equipment such as power transmission tower, television tower, radio tower, microwave tower, communication tower, and railway steel pole.


Harzone Industry has the first-grade steelwork manufacturing qualification; has the ISO9001-2000 quality system, the ISO14001-2004 Environmental Management System, and has GB/T28001-2001 Occupational Safety Management System Certification.


Harzone Industry owns two Production Bases, one Research & Design Department in Hubei province, and one subsidiary company in Beijing. Our products have been exported to over 40 countries in Asia, Africa and Latin America.
